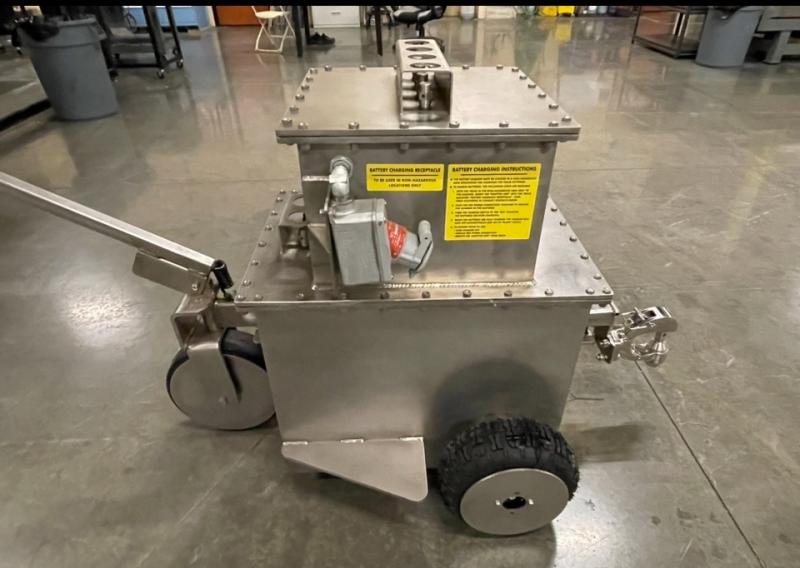

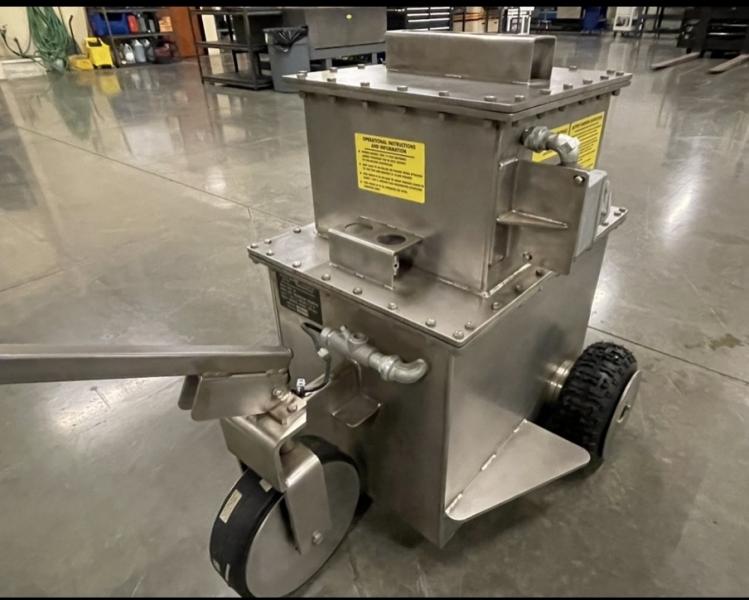

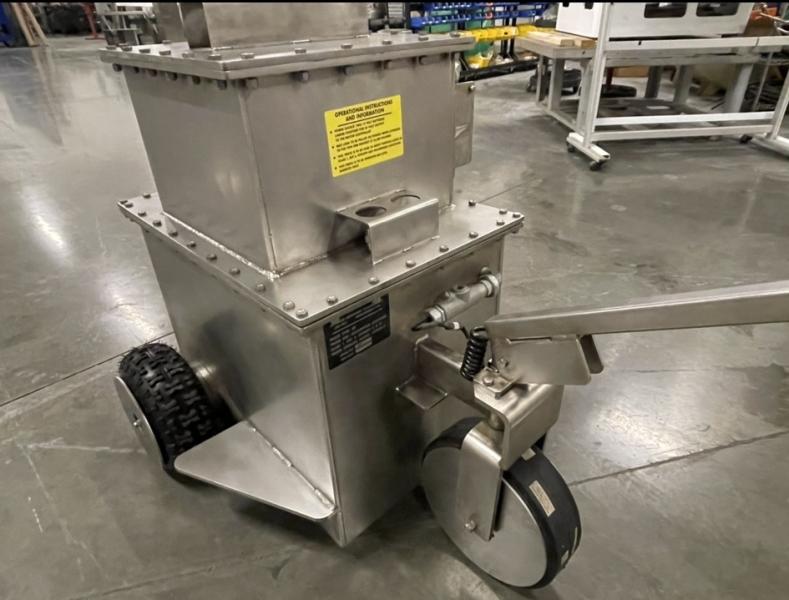

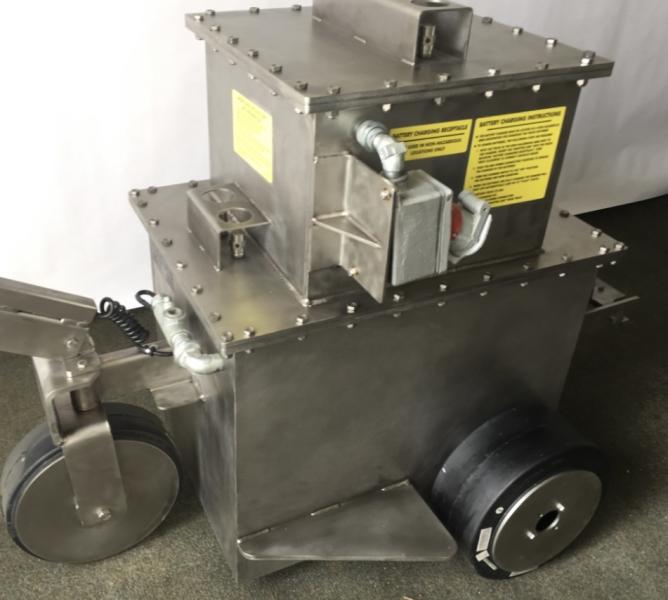

EX9000 Battery Powered Motorized Cart Mule Mover

Electrical Equipment for Use in Hazardous Locations - USA Made

Key Features & Specifications

UL 583 Type EX Approved:
Certified for use in hazardous (classified) locations—Class I & II, Division 1, Groups B, C & D, F & G.
Explosion Proof Design:
Meets UL 583 and 1203 standards for explosion-proof operation in hazardous areas.
Industrial-Grade Power:
2 HP, 24-volt motor with 262 gear reducer.
Maximum Load Capacity:
Moves up to 15,000 lbs on flat surfaces (model EX9001).
Ergonomic, Safe Operation:
Soft-stop, delayed acceleration, and regenerative braking for precise control.
Weather & Dust Protection:
IP65-rated enclosures; IP67 control switch on handle; .0015 inch gap allowance, 2" flame path on all flanges.
Battery System:
Maintenance-free AGM batteries in a separate enclosure. Fully rechargeable, 4–6 hours run time, 8–10 hours recharge time.
Speeds:
2 forward speeds: 0.3 & 0.5 MPH; 1 reverse speed: 0.3 MPH.
Emergency Stop:
Large emergency stop switch on control panel for safety.
Stainless Steel Construction:
All stainless steel body and custom pintle hook/stainless steel attachments.
Conductive Wheels:
Reduces static and increases safety.
Stand-Alone Charger:
Plugs into any 120V AC wall outlet.
Intrinsically Safe Barrier Design:
Built into bottom enclosure for ultimate protection.
Warranty:
1-year manufacturer’s warranty.
Custom Attachments Available
Stainless steel or pintle hook for your specific load.

Why Choose the EX9000 Cart Mule Mover?

The EX9000 Battery Powered Motorized Cart Mule Mover is expertly designed to move heavy wheeled loads safely and efficiently in hazardous or classified environments. With industry-leading safety certifications, all-stainless construction, and a robust battery system, the EX9000 meets the strictest standards for explosion-proof operation. It’s ideal for manufacturing plants, chemical facilities, refineries, and anywhere hazardous location material handling is required. This ergonomic mover reduces operator strain, increases productivity, and ensures compliance with OSHA and UL safety regulations.
